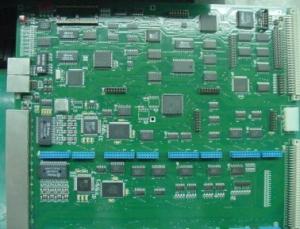

OEM Quick Turn Printed Circuit Boards Assembly with AOI Inspection
Huaswin specialized in PCB manufacturing and and PCB Assembly
Detailed Specification of Pcb Assembly
|
1
|
Type of Assembly
|
SMT and Thru-hole
|
|
2
|
Solder Type
|
Water Soluble Solder Paste,Leaded and Lead-Free
|
|
3
|
Components
|
Passives Down to 0201 Size
|
|
BGA and VFBGA
|
|
Leadless Chip Carries/CSP
|
|
Double-Sided SMT Assembly
|
|
Fine Pitch to 08 Mils
|
|
BGA Repair and Reball
|
|
Part Removal and Replacement-Same Day Service
|
|
3
|
Bare Board Size
|
Smallest:0.25x0.25 Inches
|
|
Largest:20x20 Inches
|
|
4
|
File Formats
|
Bill of Materials
|
|
Gerber Files
|
|
Pick-N-Place File(XYRS)
|
|
5
|
Type of Service
|
Turn-Key,Partial Turn-Key or Consignment
|
|
6
|
Component Packaging
|
Cut Tape
|
|
Tube
|
|
Reels
|
|
Loose Parts
|
|
7
|
Turn Time
|
15 to 20 days
|
|
8
|
Testing
|
AOI inspection
|
|
X-Ray inspection
|
|
In-Circuit testing
|
|
Functional test
|
Advantages:
Turnkey manufacturing or quick-turn prototypes
Board-level assembly or complete system integration
Low-volume or mixed-technology assembly for PCBA
Even consignment production
Supoorted capabilities
Quality Assurance:
ISO9001 and ISO/TS16949 management systems
Lean production system
ERP and PTS system support for management
Quality Processes:
1. IQC: Incoming Quality Control (Incoming Materials Inspection)
2. First Article Inspection (FAI) for every process
3. IPQC: In Process Quality Control
4. QC: 100% Test & Inspection
5. QA: Quality Assurance based on QC inspection again
6. Workmanship: IPC-A-610, ESD
7. Quality Management based on CQC, ISO9001:2008, ISO/TS16949
Testing:
AOI (Automatic optical inspection)
ICT(In-circuit test)
Reliability test
X-Ray Test
Analogue and digital function test
Firmware programming
Rich experience for SUPPLY CHAIN MANAGEMENT for components, moldings, stamping, plastic injection parts etc.
Contat us for your RFQ!
